DRULINE GT 3000 | GT 4000

DRULINE GT 3000 | GT 4000
  • LED tool-carrier
  • Toolless integration in supporting profile

Specifications

LED type: LED LLM
Powe supply: 230V/AC | 50Hz
LED driver: internal in the equipment rack
Ta max.  25° C
Risk group EN 62471:2008
Shell Sheet steel


LED light colours  GT 3000     GT 4000
LED optics
LED system power

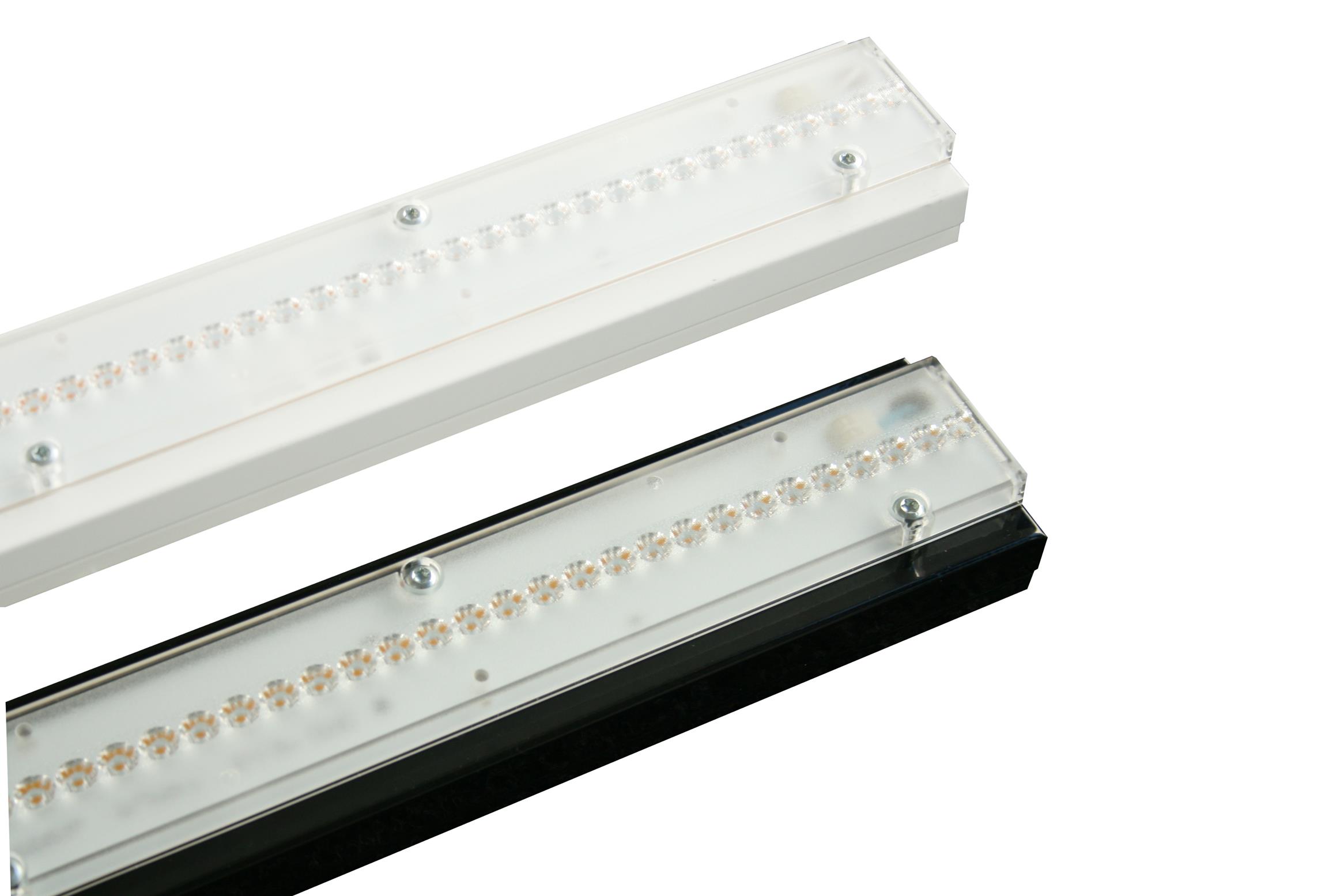

colours

Note: The article of the DRULINE series will be produced order related.
For further iformations about the delivery times please contact our sales department.

The data provided may be subject to errors and technical modifications.

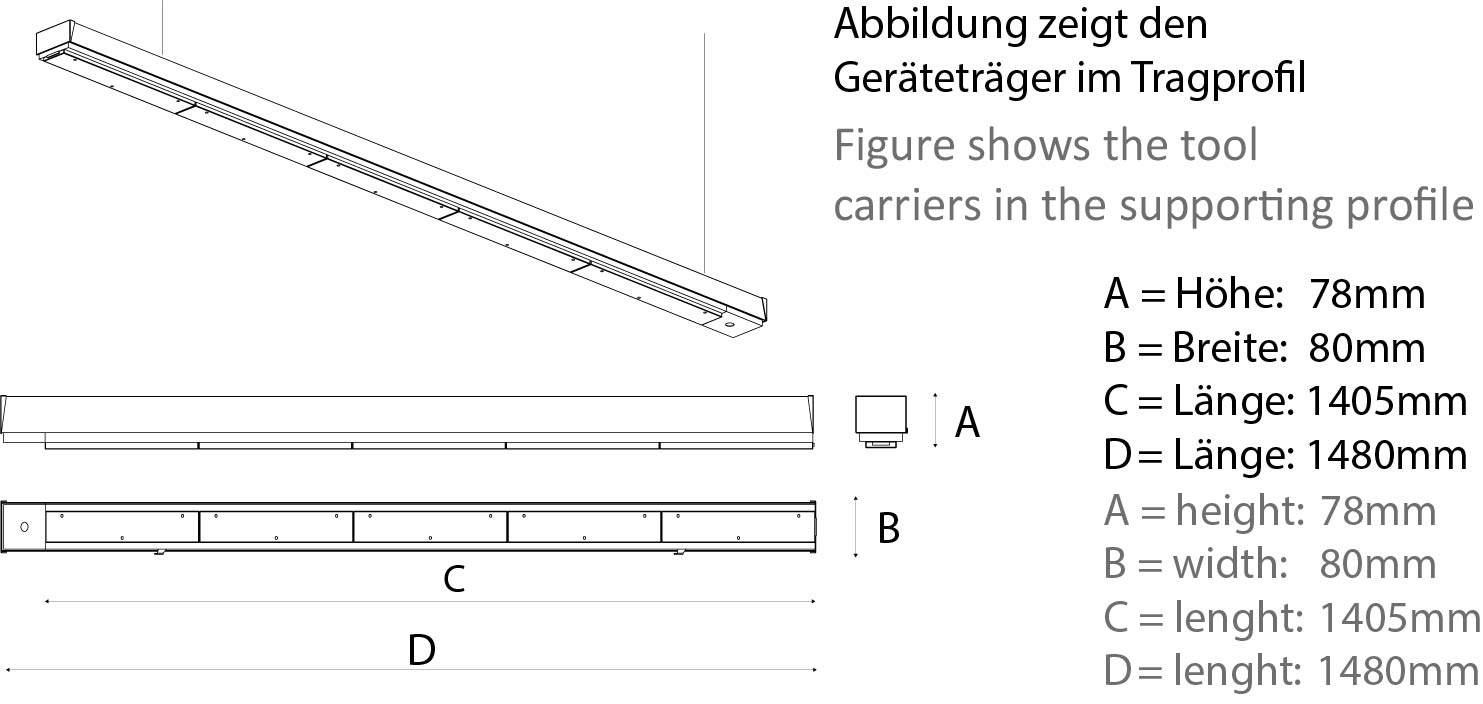

Technical details

Components

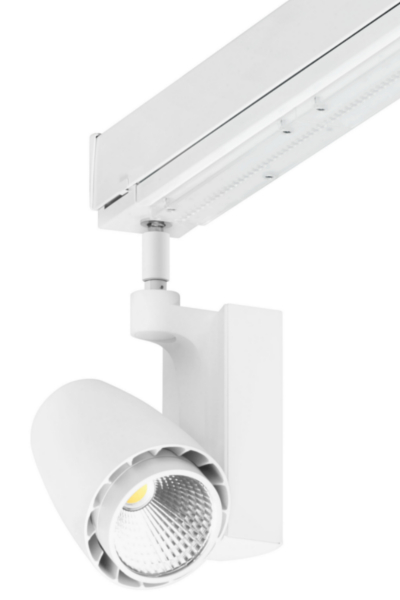

BRAGA SLA
supporting profile
supporting profile SLA
supporting profile with busbar
supporting profile connector
support section feed

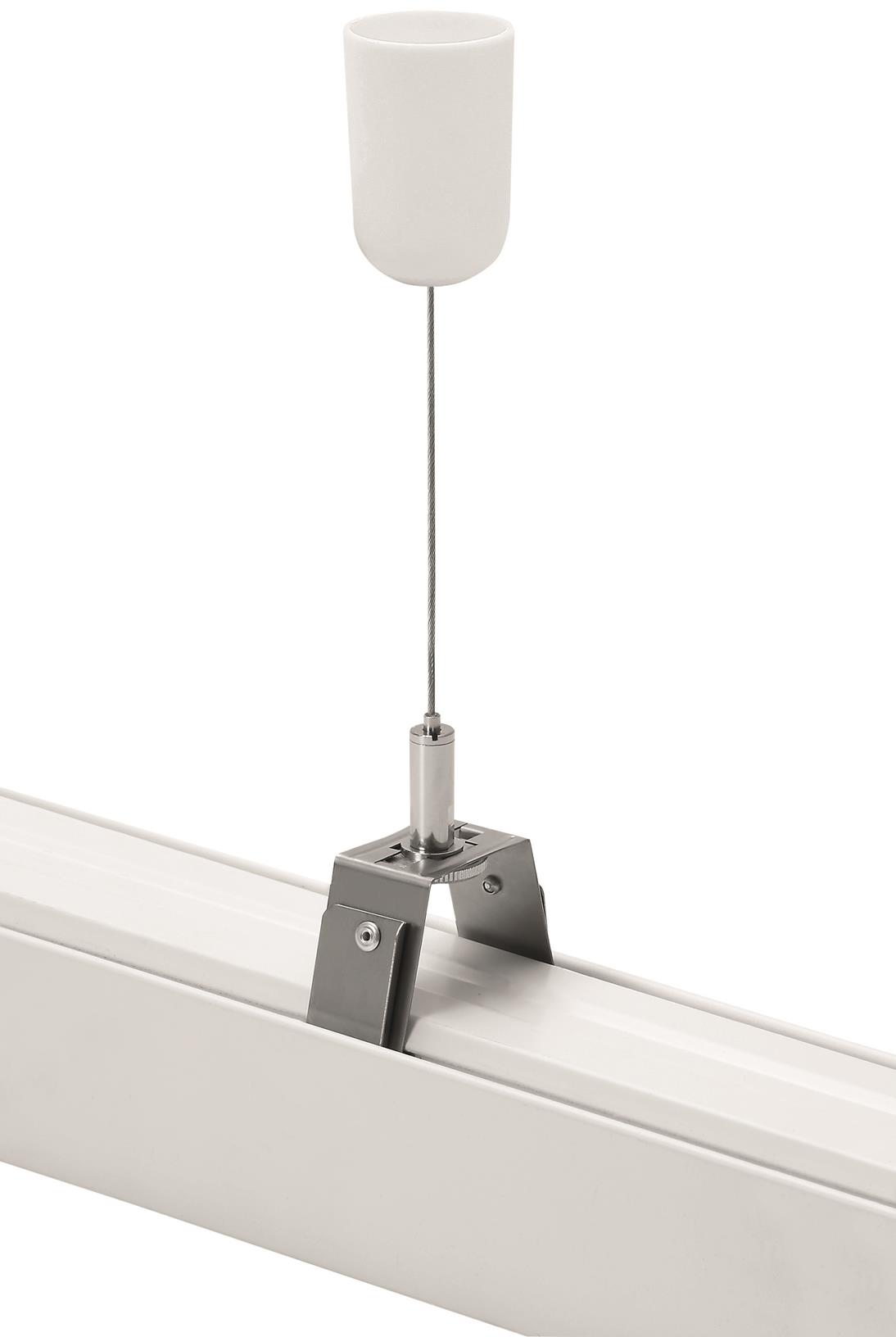

supporting beam suspension
supporting beam clamp

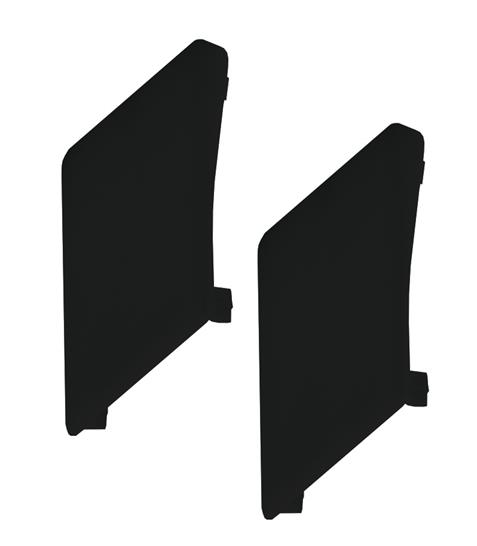

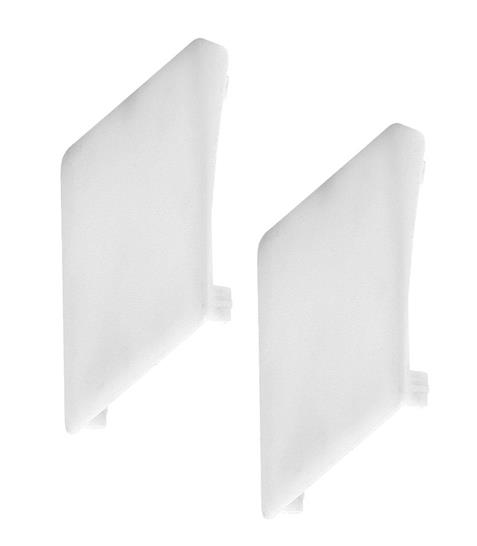

supporting profile end caps

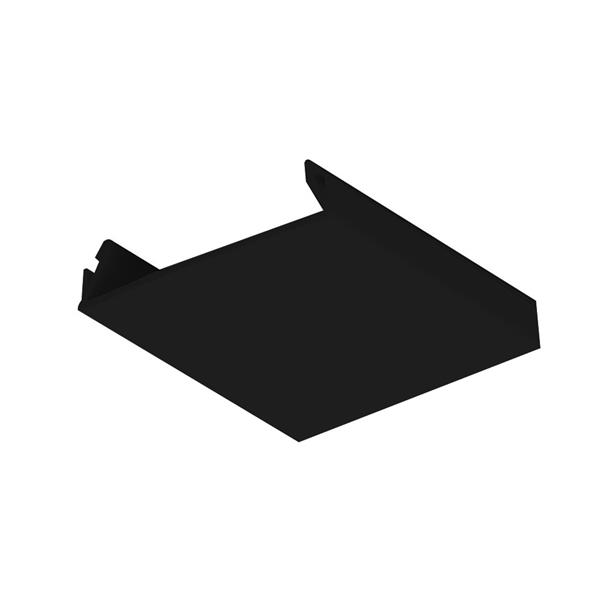

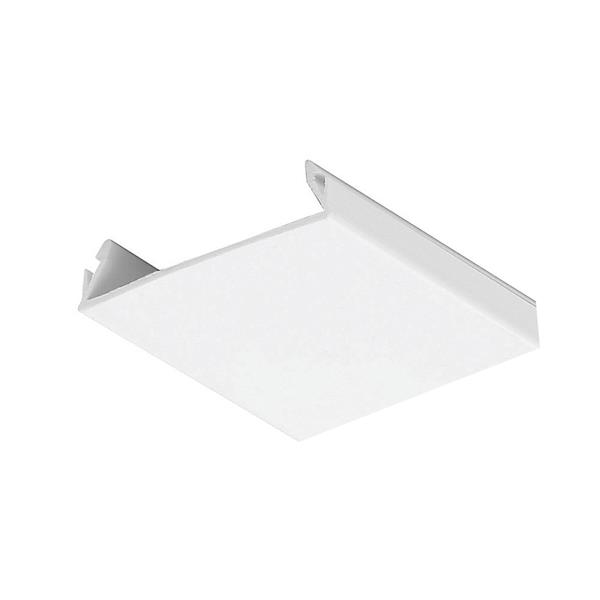

supporting profile blind cover
